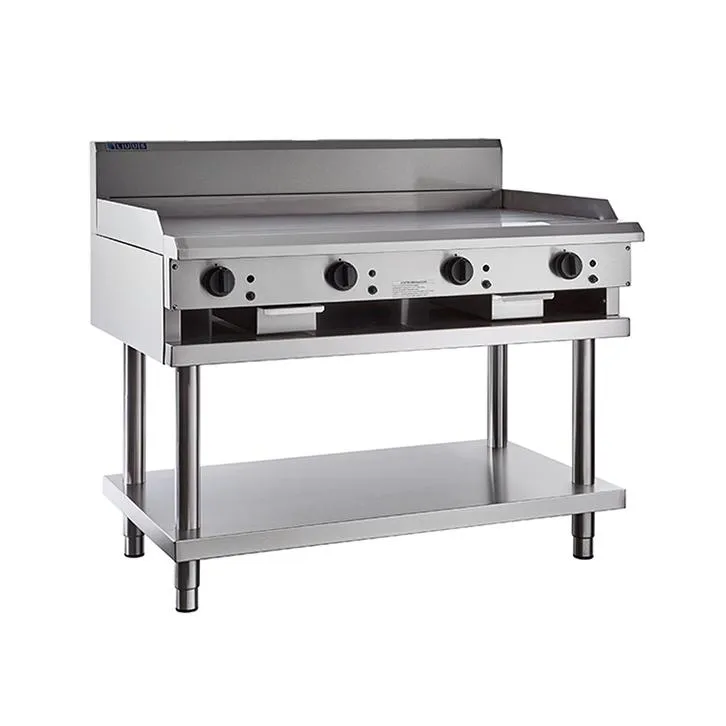

LUUS Professional Chrome Plated Griddle 1200mm - CS-12P

CS griddles can be combined with chargrills for configurations ranging from 300mm up to 1200mm wide. Ample heat from the burners are spread evenly across the cooking 16mm thick mild steel surface. Chrome plating and ribbed finishes available as an option extra.
15 month Platinum Warranty

Griddle/Hotplate
18 mj burners with pilot, FFD and piezo ignition
Variable flame control valve with low flame setting
16mm thick mild steel griddle plate
Top weld sealed hotplate sections
CS-12P plate: 1190mm x 540mm; 0.64m2 cooking area
2mm 304 stainless steel splash guards
Griddle oil bin 1.2mm stainless steel

Overall Construction
Heavy duty construction
Welded 1.2mm 304 stainless steel front hob
Front and side panels 0.9mm 304 stainless steel
Splashback 1.2 mm 304 stainless steel
Stainless steel legs with 55mm height adjustment range
Modular Professional series design

Dimensions
1200mm x 800mm x 1100mm H
Working height 900mm
Weight 146kg
Packed dimensions 1240mm x 860mm x 1260mm H
Packed weight 176kg

Connections
Gas 3/4 BSP male
180mm from right, 50mm from rear, 600mm from floor
Supplied with Natural gas regulator

Cleaning & Servicing
Easy access to all parts & components from front
