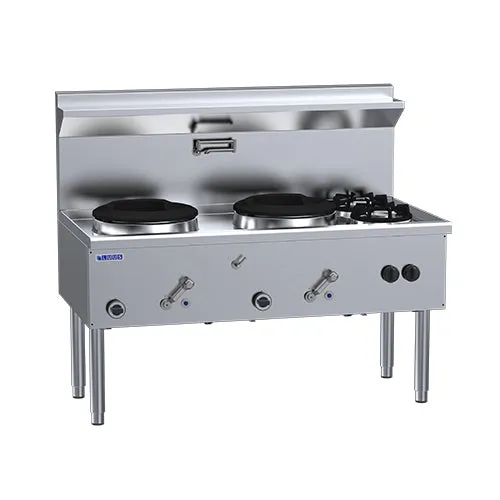

LUUS Asian 2 Chimney Waterless Wok With Side Burners 1500mm - WZ-2C2B

Space saving 800mm total unit depth
333mm wok ring suitable for standard sized woks
Chimney burners ideal for high heat/fast stir frying
Uses up to 90% less water than Traditional Woks
Air gap design eliminates need for water cooling
Machine pressed deck to prevent grime catchment
Concealed ring lip prevents water from entering air gap
Removable, vented rear condiment shelf
Modular design to suit multiple WZ wok units
Optional Duckbill and Dual Ring Burners no additional cost
Optional configuration with side burners on LHS
24 month Platinum Warranty
Easy to clean and service

Waterless Wok

110 mj 24 jet chimney burners with pilot & FFD
333mm diameter standard size cast-iron wok ring
28 mj side burners with FFD standard (pilots extra)
Air gap cooling system
Quarter turn water control lever
Folding rear laundry arm with front panel controls
Wider front gutter design for easier cleaning
Internal front heat shield panel
Supplied with waste strainer
Zinc-aluminium Alloy burner handles

Overall Construction

Heavy duty construction
Full skirt, enamelled cast-iron rings
1.5mm 304 stainless steel one-piece pressed deck
0.9mm 304 stainless steel condiment shelf
Splashback and front cover 1.2 mm 304 stainless steel
Integrated hob 1.5mm 304 stainless steel
Side panels 1.2mm 304 stainless steel
Undertrays 0.9mm stainless steel
Stainless steel removable legs
30mm height adjustment range

Dimensions

1500mm x 800mm x 1300mm H
Working height 800mm
Weight 190kg
Packed dimensions 1550mm x 900mm x 1470mm H
Packed weight 230kg

Connections

Gas 3/4 BSP female
Gas 294/421/1021mm from right, 84mm to rear, 425mm to floor
Supplied with gas regulator (specify Nat or LP on order)
Water inlet 1/2 copper tube
Water 61mm from right, 81mm to rear, 408mm to floor
Drain 1 3/4 BSP male, drain outlet 2
Drain 122mm from left, 83mm from rear, 590mm to floor

Cleaning & Servicing

Easy access to all parts & components from front
