Overview

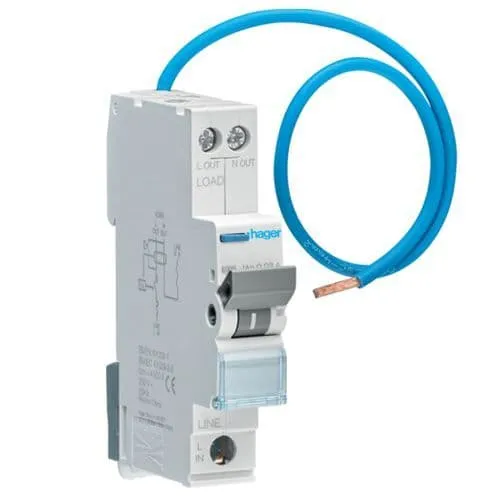

The ADA325G is a 25A, 30mA RCBO from Hager’s range of reduced height, Type A protection devices: combining the overcurrent functions of an MCB with the earth fault functions of an RCCB. Designed to avoid danger and inconvenience in the event of a circuit fault, this 6kA, B-curve RCBO can be installed in a consumer unit to protect wiring concealed in walls or partitions for residential applications.
The RCBO has a 200mm flying neutral lead and its reduced height provides increased wiring space during installation. A bottom din rail clip also allows the product to be removed from a consumer unit without the need to remove the busbar.
Connection capacity: Rigid = 16mm², Flexible = 10mm²
Designed for use in 18th Edition, Hager domestic consumer units, the ADA325G RCBO protects against both earth leakage and fault, preventing injury to humans and saving devices from current overload.
The new ADA RCBOs offer all the same functionality of the ADN range but in the more convenient compact size of a traditional MCB.
Key Features
| Dimension | 6kA 25A 30mA 92x17.7x73.6mm |
| Circuit Breakers|Description|Product | Circuit Breaker |
| Circuit Breakers|Description|Type (Cable Baskets) | RCBO |
| Circuit Breakers|Features|Pole Configuration | Single Pole (1P) |
| Circuit Breakers|Features|Mounting | DIN Rail |
| Circuit Breakers|Features|Ingress Protection | IP20 |
| Circuit Breakers|Features|Trip Type | Type B |
| Circuit Breakers|Features|Short Circuit Rating | 6 kA |
| Circuit Breakers|Features|Sensitivity | 30 mA |
| Circuit Breakers|Dimensions|Height | 92 mm |
| Circuit Breakers|Dimensions|Width | 17.5 mm |
| Circuit Breakers|Dimensions|Depth | 70 mm |
| Circuit Breakers|Technical Data|Current Rating | 25 A |
| Circuit Breakers|Technical Data|Voltage | 230 V |
| Circuit Breakers|General|Standards | BSEN61009 |
| Circuit Breakers|Description|Type | RCBO |
| Circuit Breakers|Dimensions|Cable Capacity | 16 mm2 |
| Circuit Breakers|Features|Ingress Protection (EF005474) | IP20 |
| Circuit Breakers|Dimensions|Height (EF000040) | 92 mm |
| Circuit Breakers|Dimensions|Width (EF000008) | 17.5 mm |
| Circuit Breakers|Dimensions|Depth (EF000049) | 70 mm |
| Circuit Breakers|Technical Data|Current Rating (EF000227) | 25 A |
| Circuit Breakers|Features|Mounting (EF000003) | DIN Rail |
| Circuit Breakers|Dimensions|Height (EF008809) | 92 mm |
| Circuit Breakers|Dimensions|Width (EF008808) | 17.5 mm |
| Circuit Breakers|Dimensions|Depth (EF008810) | 70 mm |
| Manufacturer | Hager Ltd - Energy Distribution |
